Name: 48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge
Brand: Ecolite/OEM/ODM
Price: 1 USD

Brand Name : Ecolite/OEM/ODM

Model Number : LTO4820

Certification : UN38.3 MSDS

Place of Origin : China

MOQ : 5000

Price : Inquiry

Payment Terms : L/C, T/T

Supply Ability : 5000Units per month

Delivery Time : 1-2 months

Packaging Details : Carton Pallet Container

Nominal Voltage : 48V

Capacity : 20.8Ah

Energy : 998.4Wh

Contact Now

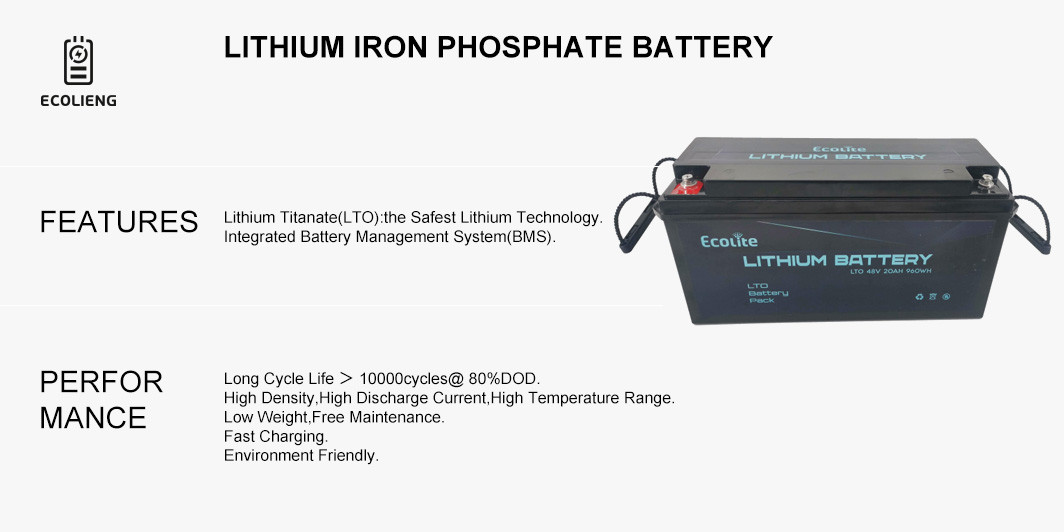

Ecolite Lithium Titanate(LTO)Battery Pack 48V20Ah Low Weight, High Rate Charge,Super Wide Temperature Range

Information
Start A Free Product Chat

48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge

ECOLTO-T1230

Lithium Titanate Battery

1)Quick Details

Lithium Titanate(LTO)48V20Ah

2)Features

low weight, high rate charge . super wide temperature range , long cycle times, green performance, most safety technology

3)Application

home energy storage system, emergency backup power system, solar home system

Product Parameter
Start A Free Product Chat

48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge

Electrical Parameters		Mechanical Parameters
Nominal Voltage	48V	Dimension(L×W×H)	406x174x232mm
Rated Capacity	20.8Ah	Dimension(L×W×H)	15.98x6.85x9.13"
Energy	998.4Wh	Weight	15kg
Resistance	≤ 12mΩ	Terminal Type	M8
Efficiency	0.99	Battery Housing	ABS, 6FM120IL
Cycle Life	>10000cycles @1C,80% DOD	Housing Protection	IP65
Self Discharge	2% per Month	Cell Type-Chemistry	LTO Cell
Max. Modules in Series/Parallel	20S/16P	SOC Display(Optional)	/
Discharge Parameters		Charge Parameters
Continuous Discharge Current	20A	Charge Method	CC-CV
Pulse Discharge Current	60A (<6S)	Charge Voltage	57V
Recommended Volt. Disconnect	30V	Recommended Float Voltage	565V
BMS Discharge Cut-off Voltage	28V	Recommended Charge Current	10A
Reconnect Voltage	34V	Maximum Charge Current	20A
Short Circuit Protection	200-500us	BMS Charge Cut-off Voltage	58V
Temperature Parameters
Discharge Temperature	-40 to 60 ℃
Charge Temperature	-40 to 60 ℃
Storage Temperature	-40 to 60℃
BMS High Temperature Cut-off	70 ℃
